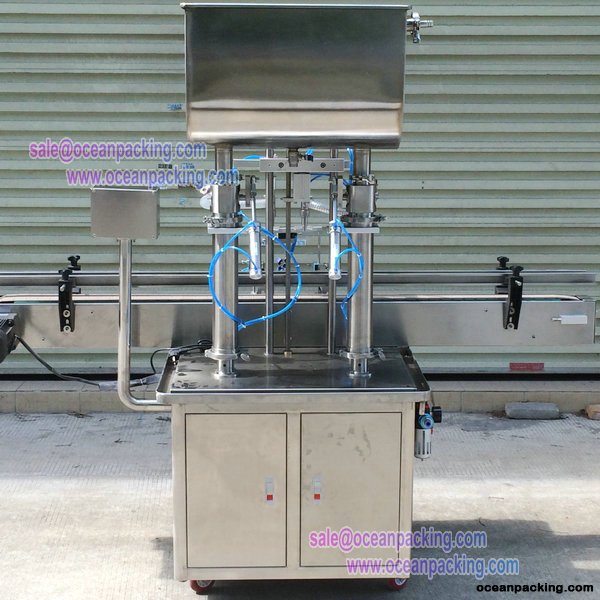

A2:OPFP-A2 automatic 2heads filling machine for viscous product

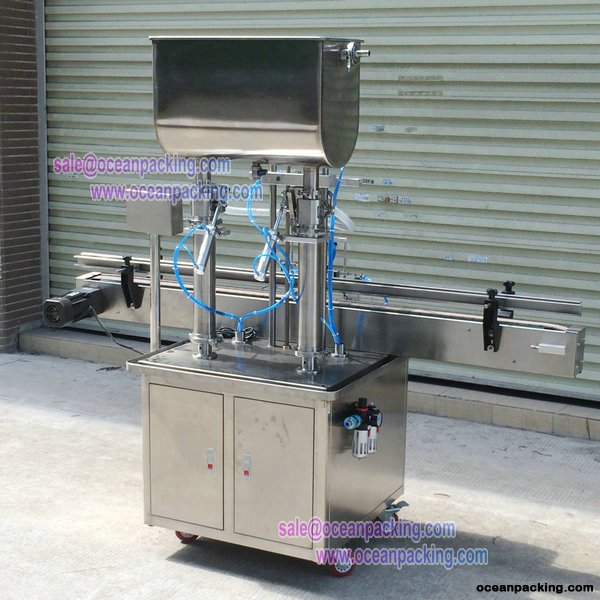

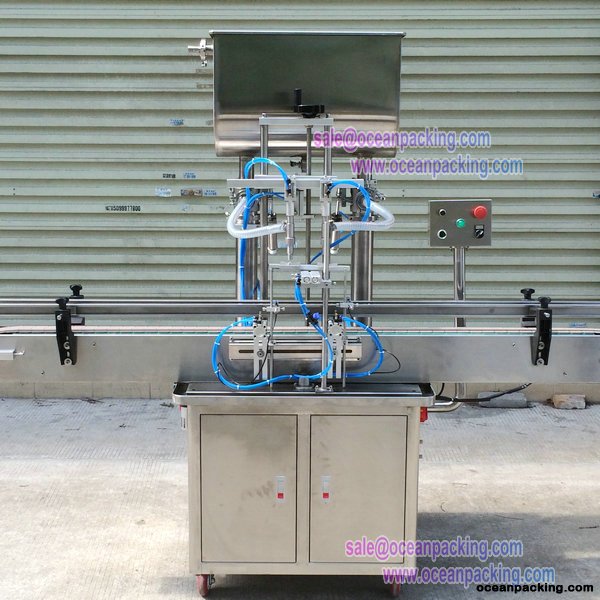

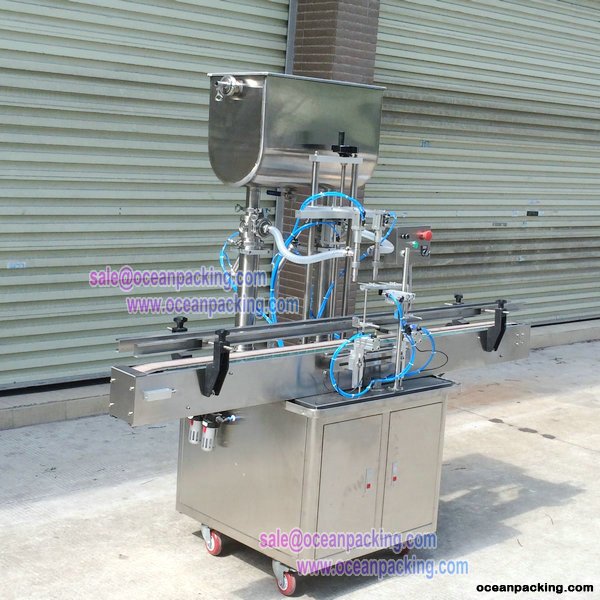

OPFP-A2 Automatic 2heads filling machine for high viscous products:

Feature:

1. suitable for filling viscosity liquid like sauce, jam, honey, cream, shampoo, lotion, perfume, etc with soft

particulate

2. suitable for most of containers such as bottles, cans, cups, jars, pots, etc

3. PLC control, easy to operate, remove and clean; ideal equipment for filling

inflammable, explosive materials

4. liquid contacted material use 316L stainless steel, other metals are made of 304 stainless

steel with surface finishing and special treatment which guarantee you very good quality

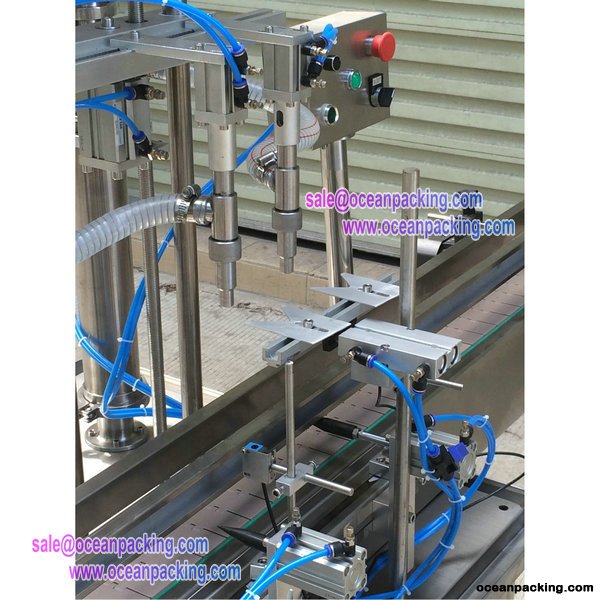

5. equipped with Airtac cylinder, high filling precision

Technical Data:

ITEMS	OPFP-A2	Filling speed	30-40bottles/minute
Filling Range	100-1000ml	Filling precision	1%
Air pressure range	4-6kg/cm2	Weight	100kg
Host size	2000*650*1380mm	Max. power	0.5kw / Ac220V 50/60Hz

Application:

1) can fill paste, cream, sauce, jam, gel, shampoo, lotion, oil, juice, perfume, ink, water, etc for containers such as bottles, jars, cans, etc

2) Widely used in cosmetic, drinks, chemical, medical, food industry etc, which

can highly improve productivity and product quality.

Packaging including:

main machine x 1pcs

hopper x 1pcs

user manual x 1pcs

quality card x 1pcs

tooling set x 1set



Others:

Lead time: within 10 days

Warranty: one year for whole machine, life time technical support

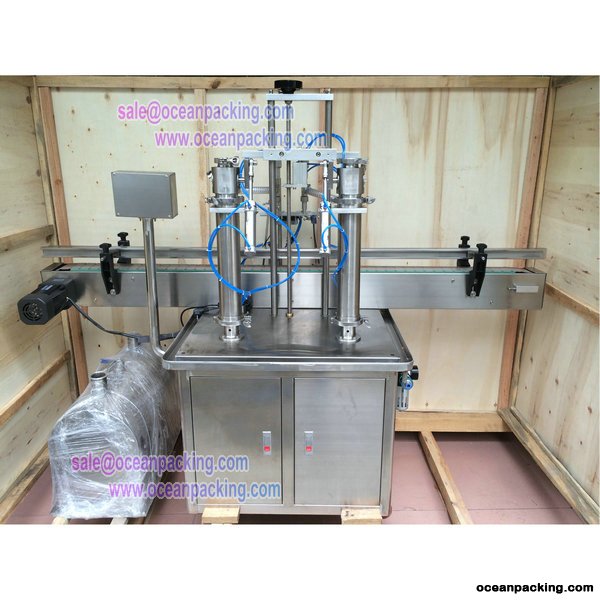

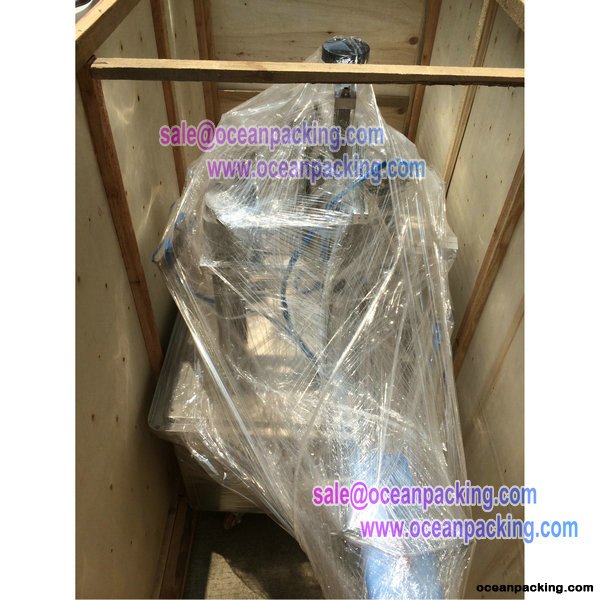

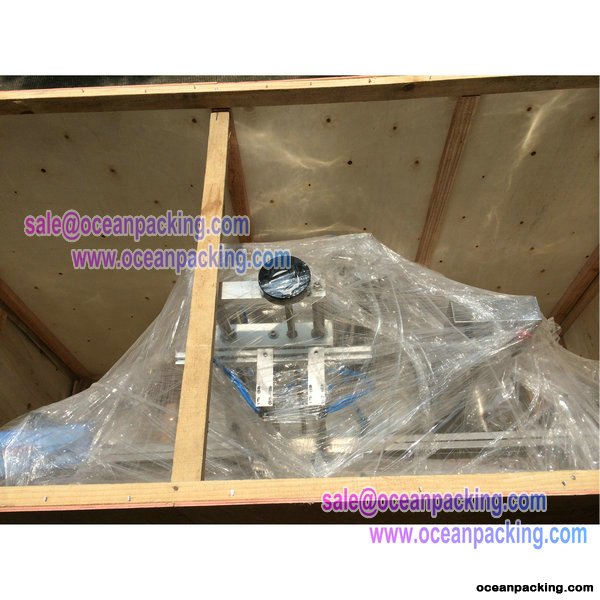

packaging: wooden case and foam

Video for this OPFP-A2 filling machine is ready to send, please do not hesitate to contact us!

Our main business/products:

1) aluminum foil induction sealing machine

2) liquid/paste filling machine

3) self adhesive labeling machine

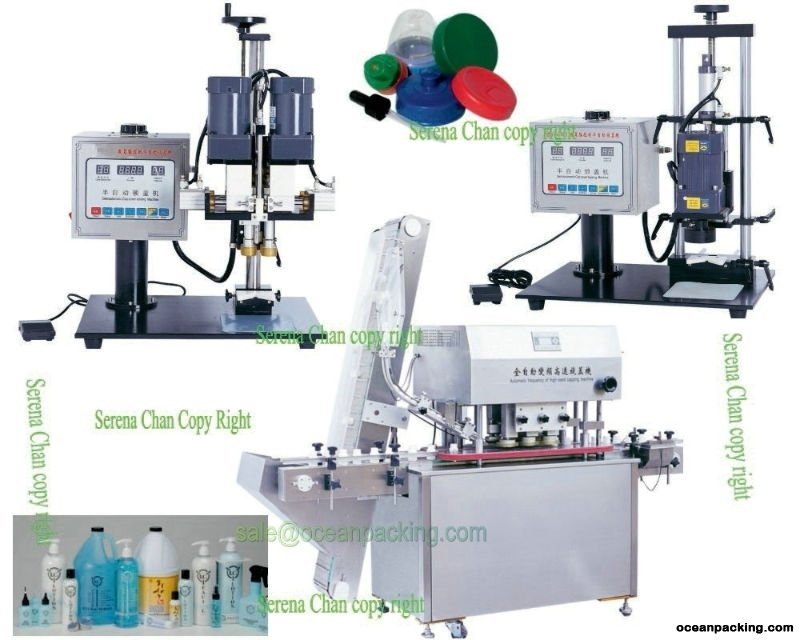

4) plastic lids capping machine
