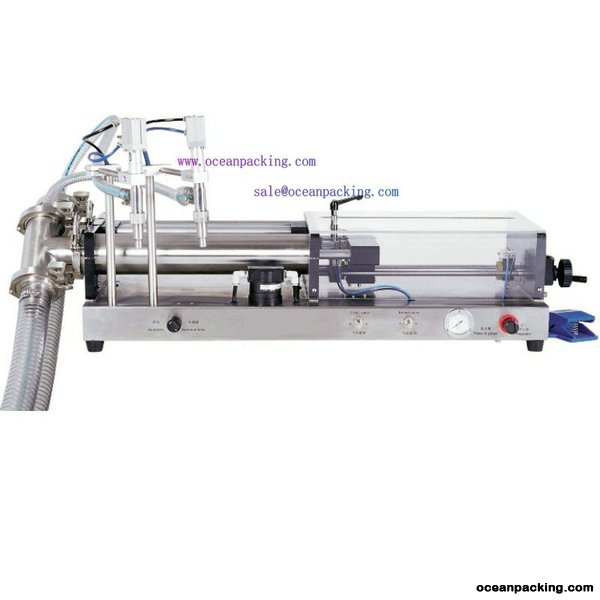

Automatic piston pump liquid filling machine with 2heads
08/17/2022
Automatic cup filling sealing machine

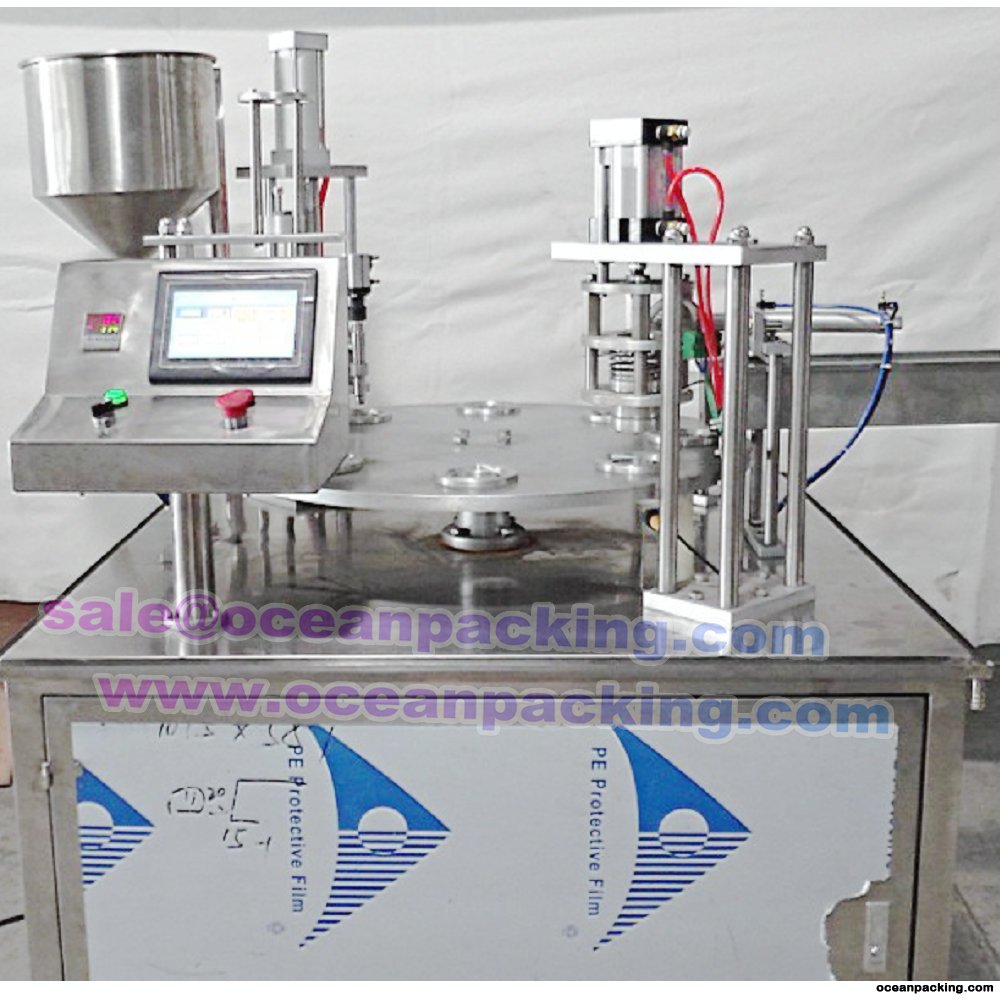

OPC-FC Automatic Cup Filling and Sealing Machine
OPC-FC Rotary type filling-sealing machine for all kinds of yogurt, milk, fruit juice beverage products,
automatic cup dropping, filling, absorb paper film, sealing. The machine uses Japan Omron programmable
logic controller, Taiwan pneumatic control components and Intelligent Digital Display Temperature
Control System. The machine material is fully 304 stainless steel, Sealing with high strength, good
sealing effect, and low failure rate, easy clean, occupies small area.
|
Machine Model
|
OPC-FC
|
Power / Voltage
|
1kw, 220v or 110v
|
|
Filling Head
|
Single head
|
Filling range
|
50-300ml(customized)
|
|
Capacity
|
800cups/hours
|
Weight
|
250kg
|
|
Air consumption
|
0.6 m3/min
|
Machine size
|
1250mm*1250mm*1750mm
|
Main Features
1) Simple structure in rotated type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Suitable for high viscous products as well as low viscous liquids;
4) Running in a high automatization and intellectualization,no pollution
Pre-sale Service
1) Reply consult and inquiry wihtin 12hours;
2) working video available for the machine;
3) visit our factory;
Production Time
a) Production time within promised lead time;
b) QC check the machine in details that every part is ok before shipment;
c) Video sent to customers for confirmation before shipment.
Ater-sale Service
i) Installing video availble for the machine;
ii) One year warranty for whole machine;
iii) Any questions about using the machine answered in 12hours;
|
Packaging
|
|
|
Size
|
170 (L) * 170(W) * 220(D)
|
|
Weight
|
300kg
|
|
Packaging Details
|
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
